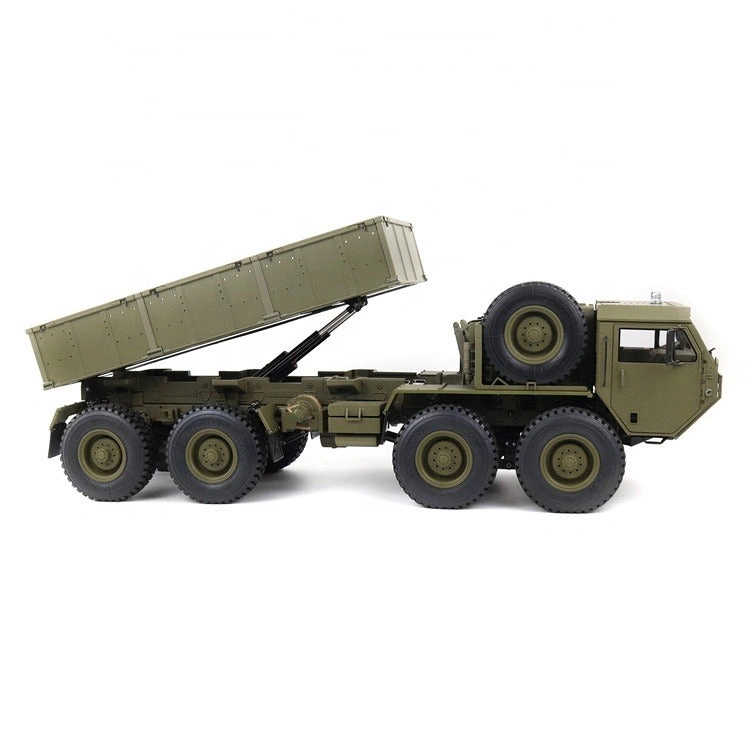

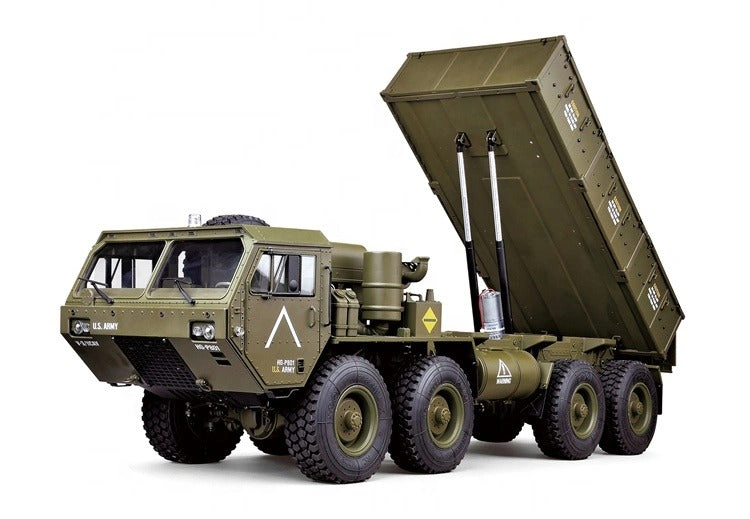

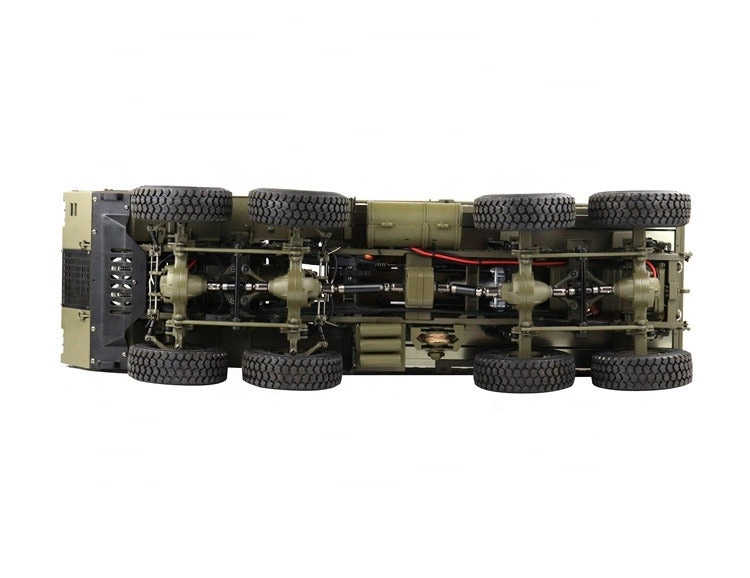

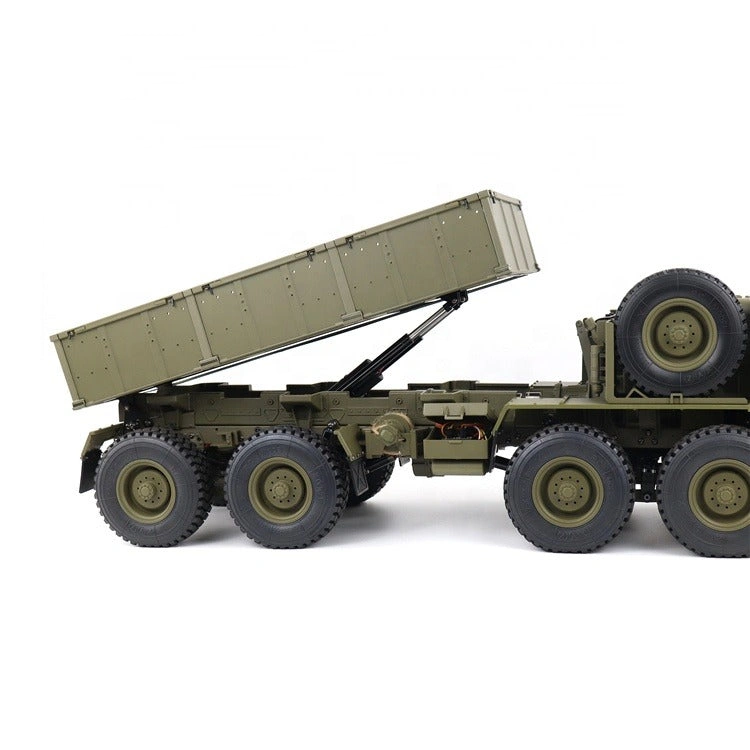

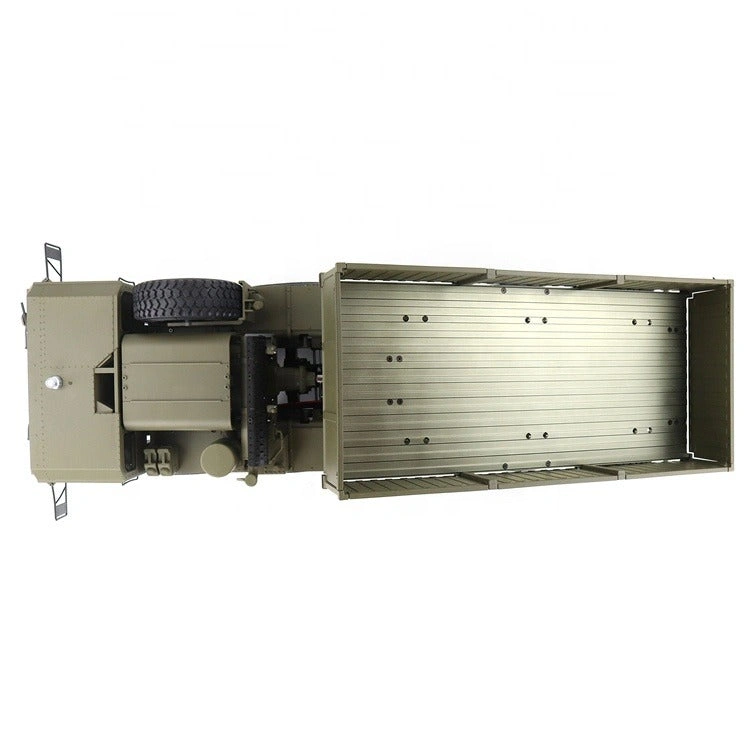

HG P803A RC OSHKOSH HEMTT standard version NOTE: No battery/ charger included
Product Name: | HG P803A RC OSHKOSH HEMTT |
Product Size: | 739.5×218.5×242.5mm |
Battery: | 6*1.5V AA battery (purchased separately) |
Main functions: | |
1. 2.4G four-channel automatic frequency matching and full-scale synchronous remote control system 2. 2 15kg copper-tooth digital steering gears (high-power steering) 3. Independent 15A regulated power supply mode for steering gear 4. The secondary mechanical gear of the central transmission is adjustable (remote control adjustable) 5. The chassis structure of the whole vehicle adopts zinc alloy materials 6. The front and rear axles adopt a bevel-to-straight-tooth high-load reduction transmission structure 7. Spring steel sheet shock absorber + telescopic double shock absorber 8. Variable stroke CVD ball universal joint shaft 9. Front and rear independent linkage bridge hanging system 10. The side panels of the rear side of the car can be fully opened 11. Aluminum alloy of body floor 12. The electric telescopic rod can be operated by remote control to jack up the whole body 13. 8x8/8-wheel full-time drive, 550 high torque motor (3660 brushless motor) using planetary gear drive structure 14. Vehicle 1:12 full-scale high simulation model; 320A independent electronic governor/60A brushless ESC 15. The lighting combination and simulation sound combination can be upgraded under any platform modification 16. The first 4 wheels adopt a wire rope pulling structure to realize the same direction and synchronous steering of the four wheels | |
Packing List: | |
Structure specification *1 | |
Carton: | |
CTN Size: | 95*31.8*36cm |
QTY/CTN: | 1 PCS |
G.W./N.W.: | 14kg/12kg |
Detail part 1. Maximum climbing angle: 35° in low gear; 15° in high gear |
